BrainRender

This module provides a CLI-based wrapper for brainrender. Once installed, the CLI can be invoked directly from the command line.

• See Options

$ nl_brainrender -h

• Output

BrainRender CLI Options

options:
  -h, --help        show this help message and exit

commands:
  {area,roi,probe}
    area            Reconstruct a 3D brain view used brainrender module
    roi             ROIs reconstruction with brainrender
    probe           Probe track reconstruction with brainrender

Region Reconstruction

• Refer to API: neuralib.atlas.brainrender.core

• See Options

$ neuralib_brainrender area -h

• Output

Basic Settings Option:
  --camera sagittal|sagittal2|frontal|top|top_side|three_quarters
                        camera angle
  --style metallic|cartoon|plastic|shiny|glossy
                        Shader style to use
  --title TEXT          title added to the top of the window
  -S NAME, --source NAME
                        atlas source name. allen_human_500um as human
  --root-alpha ROOT_ALPHA
                        root alpha
  --no-root             render without root(brain) mesh
  --bg white|black      background color
  --coord-space ccf|brainrender
                        which coordinate space, by default ccf

Optional Option:
  --annotation AV,DV,ML
                        whether draw point annotation. e.g., 1.5:1:0.4,-3.2:0.8:0.4 for two points

Region Option:
  -R NAME,..., --region NAME,...
                        region(s) name
  --region-color COLOR,...
                        region(s) color
  --region-alpha REGIONS_ALPHA
                        region alpha value
  -H right|left|both, --hemisphere right|left|both
                        which hemisphere for rendering the region
  --print-tree          print tree for the available regions for the given source
  --tree-init TREE_INIT
                        init region for the tree print
  --print-name          print acronym and the corresponding name

Output Option:
  --video-output VIDEO_OUTPUT
                        video output path
  -O OUTPUT, --output OUTPUT
                        output path for the html, if None, preview

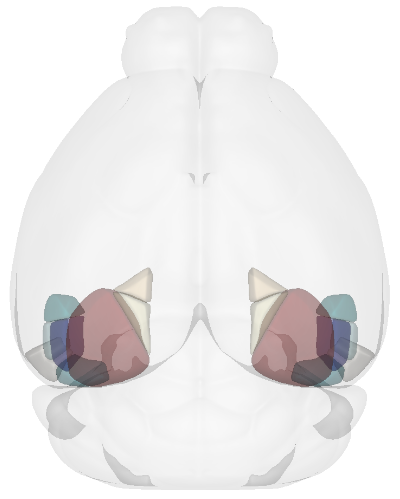

• Example of Reconstructing the Visual Cortex subregions

$ neuralib_brainrender area -R VISal,VISam,VISl,VISli,VISp,VISpl,VISpm,VISpor --camera top

ROI Reconstruction

Reconstruct ROIs together with brain region(s)

• Refer to API: neuralib.atlas.brainrender.roi

• See Options

$ neuralib_brainrender roi -h

• Output

ROI View Option:
  --roi-region NAME,...
                        only show rois in region(s)
  --roi-radius RADIUS   each roi radius
  --roi-alpha ROI_ALPHA
                        region alpha value
  --roi-colors COLOR,...
                        colors of rois per region
  --region-col TREE..   if None, auto infer, and check the lowest merge level contain all the regions specified
  --inverse-lut         inverse right/left maps to ipsi/contra hemisphere look up table
  --source-order SOURCE,...
                        source order to follow the roi_colors

Note

By default, coordinates are interpreted in the CCF coordinate space. You can specify the coordinate space using the --coord-space option: {ccf, brainrender}.

NumPy File Input

Input shape: Array[float, (N, 3)], with AP, DV, and ML coordinates.

• Example

[[-3.03,  4.34, -4.50],
 [-3.03,  4.42, -4.37],
 ...
 [-2.91,  4.12,  4.85]]

• Run

$ neuralib_brainrender roi --file <NUMPY_FILE>

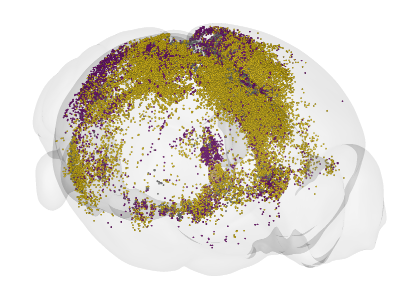

CSV File Input

• Required columns: AP_location, DV_location, ML_location

┌─────────────┬─────────────┬─────────────┐
│ AP_location │ DV_location │ ML_location │
│------------ │-------------│-------------│
│ -3.03       │ 4.34        │ -4.50       │
│ -3.03       │ 4.92        │ -4.31       │
│ ...         │ ...         │ ...         │
│ -2.91       │ 4.12        │ 4.85        │
└─────────────┴─────────────┴─────────────┘

• Example

$ neuralib_brainrender roi --file <CSV_FILE>

Flexible Reconstruction (Processed CSV)

Be able to reconstruct rois in a specific regions/subregions

• Example of using parsed allenccf csv output

┌───────────────────────────────────┬─────────┬─────────────┬─────────────┬─────────────┬─────────┬─────────┬────────┬────────────┐
│ name                              ┆ acronym ┆ AP_location ┆ DV_location ┆ ML_location ┆ avIndex ┆ channel ┆ source ┆  ...       │
│ ---                               ┆ ---     ┆ ---         ┆ ---         ┆ ---         ┆ ---     ┆ ---     ┆ ---    ┆  ---       │
│ str                               ┆ str     ┆ f64         ┆ f64         ┆ f64         ┆ i64     ┆ str     ┆ str    ┆  ...       │
╞═══════════════════════════════════╪═════════╪═════════════╪═════════════╪═════════════╪═════════╪═════════╪════════╪════════════╡
│ Ectorhinal area/Layer 5           ┆ ECT5    ┆ -3.03       ┆ 4.34        ┆ -4.5        ┆ 377     ┆ gfp     ┆ VIS    ┆  ...       │
│ Perirhinal area layer 6a          ┆ PERI6a  ┆ -3.03       ┆ 4.42        ┆ -4.37       ┆ 372     ┆ gfp     ┆ VIS    ┆  ...       │
│ …                                 ┆ …       ┆ …           ┆ …           ┆ …           ┆ …       ┆ …       ┆ …      ┆  …         │
│ Ventral auditory area layer 6a    ┆ AUDv6a  ┆ -2.91       ┆ 3.52        ┆ 4.46        ┆ 156     ┆ rfp     ┆ CA1    ┆  ...       │
│ Ectorhinal area/Layer 6a          ┆ ECT6a   ┆ -2.91       ┆ 4.14        ┆ 4.47        ┆ 378     ┆ rfp     ┆ CA1    ┆  ...       │
│ Temporal association areas layer… ┆ TEa5    ┆ -2.91       ┆ 4.02        ┆ 4.55        ┆ 365     ┆ rfp     ┆ CA1    ┆  ...       │
└───────────────────────────────────┴─────────┴─────────────┴─────────────┴─────────────┴─────────┴─────────┴────────┴────────────┘

import polars as pl
from neuralib.atlas.ccf.classifier import RoiClassifierDataFrame

df = pl.DataFrame({
    "acronym": ["RSPd", "RSPd", "VISp", "VISp"],
    "AP_location": [1.2, 1.3, -2.4, -2.6],
    "DV_location": [1.0, 1.1, 2.0, 2.1],
    "ML_location": [0.4, -0.3, 0.2, -0.2],
    "channel": ["gfp", "gfp", "rfp", "rfp"],
    "source": ["CA1", "CA1", "CA3", "CA3"]
})

df = RoiClassifierDataFrame(df).post_processing().dataframe()
df.write_csv(CSV_FILE)

See also

RoiClassifierDataFrame

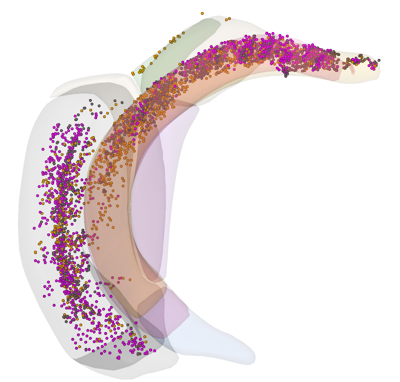

• Example (reconstruct ROI in the parahippocampal areas)

$ neuralib_brainrender roi --classifier-file <CSV_FILE> --region APr,ENT,HATA,PAR,POST,PRE,ProS,SUB --roi-region RHP --region-alpha 0.2 --roi-radius 20 --no-root -H right

Probe Reconstruction

Reconstruct probes (or shanks) based on trajectory labeling (e.g., DiI, DiO, or lesion tracks)

• Refer to API: neuralib.atlas.brainrender.probe

• See Options

$ neuralib_brainrender probe -h

• Output

Probe Option:
  --depth IMPLANT_DEPTH
                        implant depth in um
  --interval SHANK_INTERVAL
                        shank interval in um if multi-shank
  --dye                 only show the histology dye parts
  --remove-outside-brain
                        remove reconstruction outside the brain
  --file FILE           multi-shank npy or csv file to be inferred
  --plane-type coronal|sagittal|transverse, -P coronal|sagittal|transverse
                        cutting orientation to infer the multi-shank label point/probe_idx

• Default coordinate space: CCF

• Set coordinate space using: --coord-space {ccf, brainrender}

• Each shank must have 2 points: dorsal and ventral

NumPy File Input

• Single shank: ``Array[float, (2, 3)]`` (dorsal and ventral 3D AP/ML/DV coordinates)

[[-3.82, 1.92, -3.12],
 [-3.93, 4.36, -3.30]]

• Multi-shank: ``Array[float, (S, 2, 3)]``

[[[...], [...]],
 [[...], [...]],
 ...]

CSV File Input

• Required fields: AP_location, DV_location, ML_location, point, probe_idx

• If loss either point, probe_idx field, then auto infer based on the given insertion --plane

┌─────────────┬─────────────┬─────────────┬─────────┬───────────┐
│ AP_location │ DV_location │ ML_location │ point   │ probe_idx │
├─────────────┼─────────────┼─────────────┼─────────┼───────────┤
│ -3.81       │ 1.92        │ -3.12       │ dorsal  │ 1         │
│ -3.93       │ 4.36        │ -3.30       │ ventral │ 1         │
│ ...         │ ...         │ ...         │ ...     │ ...       │
└─────────────┴─────────────┴─────────────┴─────────┴───────────┘

Additional Probe Options

• --depth DEPTH: Depth (in µm) of the implantation from the brain surface

• --dye: Only reconstruct dye-labeled tracks (default includes both dye and theoretical)

• --remove-outside-brain: Exclude any segments outside the brain

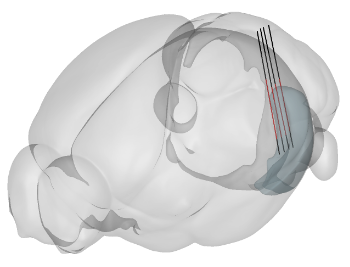

• Example of Reconstructing a 4-shank NeuroPixel probe targeting the left entorhinal cortex

$ neuralib_brainrender probe -F <FILE> --depth 3000 -P sagittal -R ENT -H left

• Red = dye-labeled track

• Black = theoretical track
